Aolan 8ft 16ft 24ft Outdoor Waterproof PMSM Motor Aluminum Blade Floor Mounted Fan Pole Fan Ventilation Fan for Park and Garden
AOLAN VErtical FAN 3-7.3m large outdoor use pole fan
Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
المحرك :
ADS-L50AMالمصدر الكهربائي (فولت/هرتز) :
220/380/460V / 50/60HZضوضاء :
≤38 dBAقوة :
0.75KWتدفق الهواء (م3/ساعة) :
10000القطر :
5Rotating Speed (rpm) :
80coverage area (m²) :
500AOLAN VErtical FAN
Aolan 3-7.3m large outdoor use pole fan
Our ADS-L series smart permanent magnet large outdoor stand fan is a new product specially developed for outdoor natual ventilation system. Self-designed variable frequency speed control, high efficiency and energy saving permanent magnet external rotor motor drive. It has the advantage of low noise, small volume, lightweight, compact structure and beautiful appearance.
Application cases:parks, city squares, outdoor dining, urban construction sites, etc., can provide outdoor people with a cool natural ventilation and cooling experience and a more comfortable leisure and dining experience, energy saving effect is remarkable.
Fan range :3m,3.7m,4.3m,5m,6.1m,6.7m and 7.3m
Specification:
| Model/Specs |
ADS-L37AR | ADS-L50AM | ADS-L73AM | ADS-L73BM |
| Diameter | 3.7 | 5 | 7.3 | 7.3 |
| Voltage (V) | 220 | 220/380 | 220/380 | 220/380 |
| Frequency (Hz) | 50/60 | 50/60 | 50/60 | 50/60 |
| Power (Kw) | 0.37 | 0.75 | 1.1 | 1.5 |
| Rotating speed (r/min) | 100 | 80 | 55 | 60 |
| Air flow (m³/) | 5000 | 10000 | 13000 | 15500 |
| Noise （dB(A)） | ≤38 | ≤38 | ≤38 | ≤38 |
| Coverage area(m²) | 200 | 500 | 1500 | 1700 |
| Hight（m） | 3 | 4 | 7 | 7 |
| Number of leaves(Pcs) | 5 | 5 | 6 | 6 |
Characteristics:
VERTICAL FAN
STREAMLINED FAN BLADE MPERMANENT MAGNET SYNCHRONOUS MOTOR
ENERGY SAVING TAIL
When the fan blade is running, the air will generate vortex at the end of the aerofoil fan blade. The tail wing can eliminate this part of energy loss, stabilize the fan operation, and make the air flow more consistent with the aerodynamic principle.

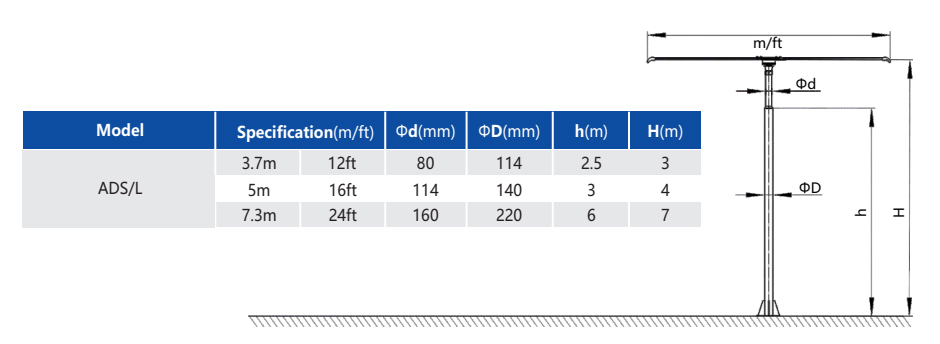

VERTICAL INSTALLATION DATA

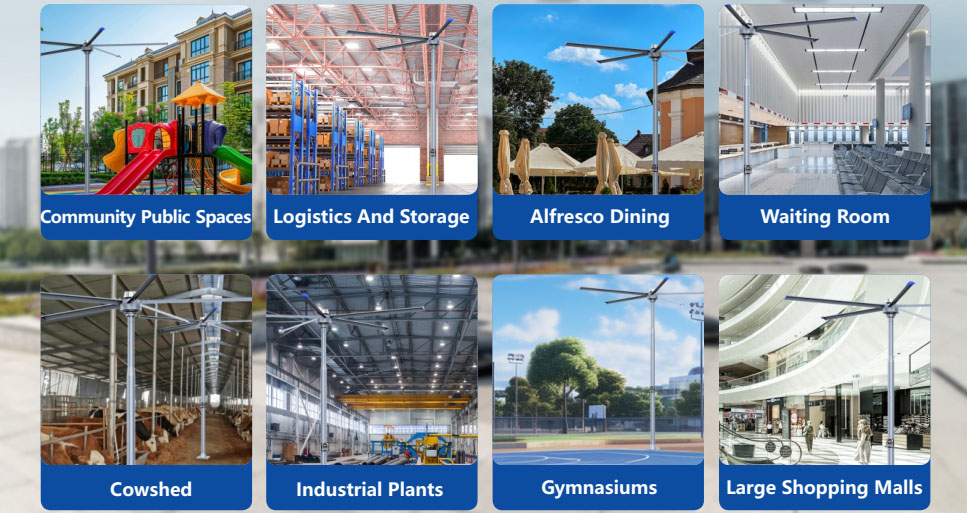

APPLICATIONS
Vertical fan is designed for places or spaces where there is no ceiling to hang a traditional ceiling fan or the ceiling is
too high to hang and use a ceiling fan. In shopping malls, restaurants, community public places, industrial plants, logistics
warehousing, waiting rooms, exhibition halls, gymnasiums, and other tall space places, it is a new type of fan for space ventilation and personnel cooling.
تستخدم مراوح Aolan HVLS شفرات ديناميكية هوائية لتوليد تدفق الهواء وذيلًا لتشكيل الاضطرابات التدفق، وتوليد تدفق الهواء الأرضي بمعدل 0.25-3.5 متر/ثانية من خلال نظام التحكم، والذي يعمل بشكل كبير يُحسّن راحة البيئة. تصل مساحة التغطية الفعالة إلى ١٧٠٠ متر مربع. أمتار (قطرها 46 متراً).
