Aolan Giant Waterproof Portable Movable Fan Electric with 220V 380V AC Motor HVLS for Space Ventilation
Aolan ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
المحرك :
ADS-Y12AMالمصدر الكهربائي (فولت/هرتز) :
1PH 220 / 50/60HZضوضاء :
≤39 dBAقوة :
0.55Kwتدفق الهواء (م3/ساعة) :
30000مساحة التبريد (م2) :
80القطر :
1.2Air Supply distance (m) :
1-7Rotating Speed (rpm) :
600Weight(kg) :

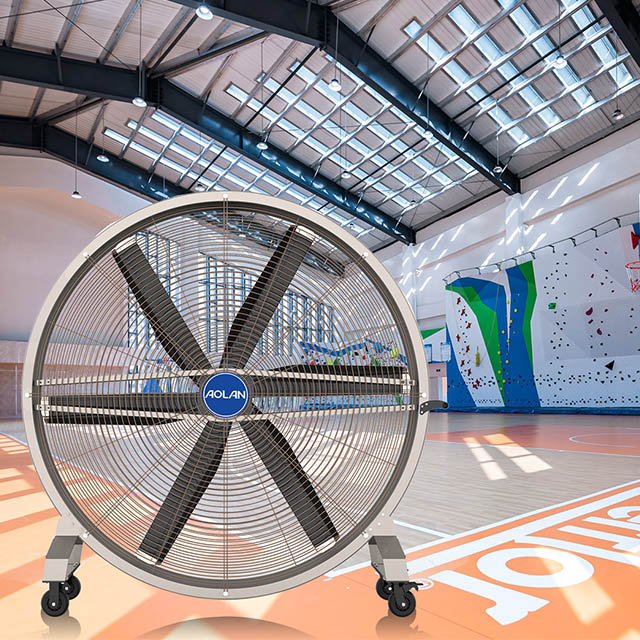

73THE PM VFD MOVABLE FAN
Aolan ADS-Y series the PM VFD movable fan unique wing design, straight blade diameter from 1~2m, adopting the principle of aerodynamics and advanced technology manufacturing blades wing, formed by strong air agitation ability of circulation flow field, produce like the breeze system of nature, the body will feel three-dimensional wind from all directions, increased sweat evaporation area,increase your comfort level. At the same time avoid the use of traditional high-speed fan in the direction of the wind all year round, causing a variety of human health problems, greatly improve the comfort of the environment.
ADS-Y series fans can be combined with the actual needs of different occasions to adjust the wind volume, the wind speed in the range of 1m-6m /s can be arbitrarily adjusted.In the open space, the industrial energy-saving mobile fan's maximum blowing distance is 28 meters.
Specification:
| Model/Specs |
ADS-Y12AR | ADS-Y15AR | ADS-Y20AR |
| Diameter (m) | 1.2 | 1.5 | 2 |
| Power (KW) | 0.55 | 0.75 | 1 |
| Voltage (V) | 1PH 220 | ||
| Frequency (HZ) | 50/60HZ |
||
| Airfiow (m3/min) | 30000 | 55000 | 88000 |
| Air speed (m/s) | 1-7 | 1-6.5 | 1-5.5 |
| Number of blades (Pcs) | 5 | 5 | 6 |
| Rotating speed (rpm) | 600 | 420 | 300 |
| Noise （dB(A)） | ≤39dBA | ||
| Weight (kg) | 73 | 93 | 121 |
| Coverage area (m2) | 80 | 150 | 260 |
Characteristics:

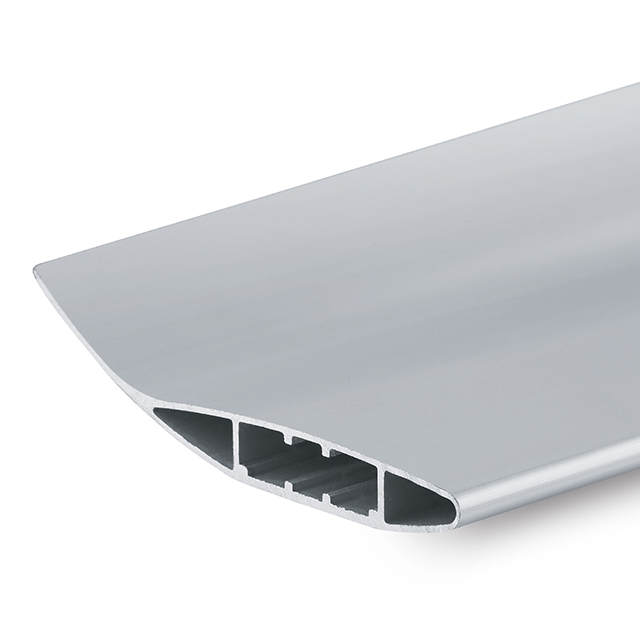

STREAMLINED FAN BLADE
It is made of aluminum and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness, light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment. which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.
ENERGY SAVING TAIL
When the fan blade is running, the air will generate vortex at the end of the aerofoil fan blade. The tail wing can eliminatethis part of energy loss, stabilize the fan operation, and make the air flow more consistent with the aerodynamic principle.
|
ADJUSTABLE AIR SUPPLY ANGLE
In different places of use,the fan's air delivery angle needs to be more flexible and versatile, this time the adjustable angle of the Model B movable fan can make a big difference.Pitch angle adjustable range of-45°~+45° (horizontal blowing for 0²), 15° a gear, a total of 7 gears. |
 |

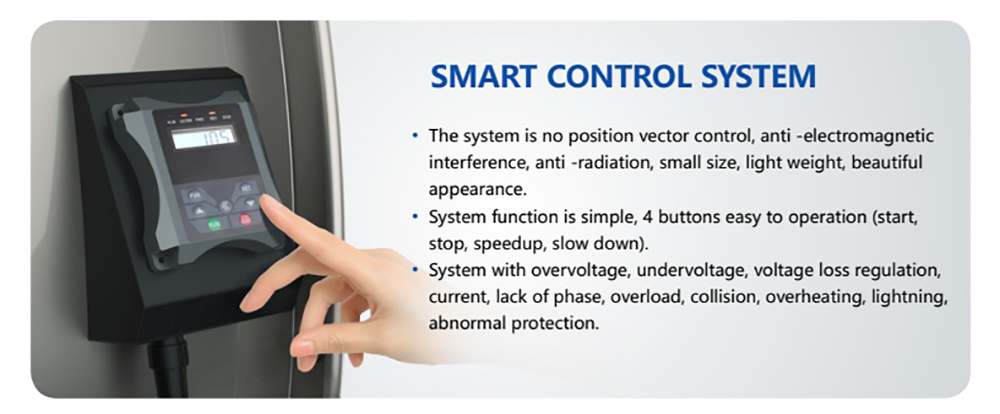

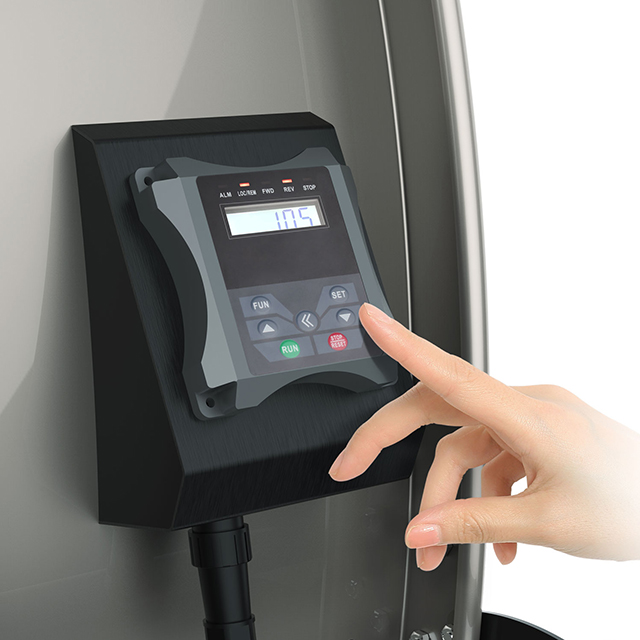

EASY TO OPERATION
Knob speed control (S): Small and convenient, easy to operation. Power saving and durable. Quickly switch the forward
and reverse directions of the motor.
Push-button speed control (M): with LED indicator light, compact structure, which can reduce the risk of dust
accumulation and penetration, high protection level of button operation.
Four-button operation (M): start, stop, accelerate, decelerate.
Five-key operation (S): programming key, running key, stop key, confirmation key, encoder button.
Digital display (S/M): display function parameters and setting values, various operation data fault cause codes, the state
of the operation panel and the frequency conversion operation state, which is convenient for personnel to maintain in time.

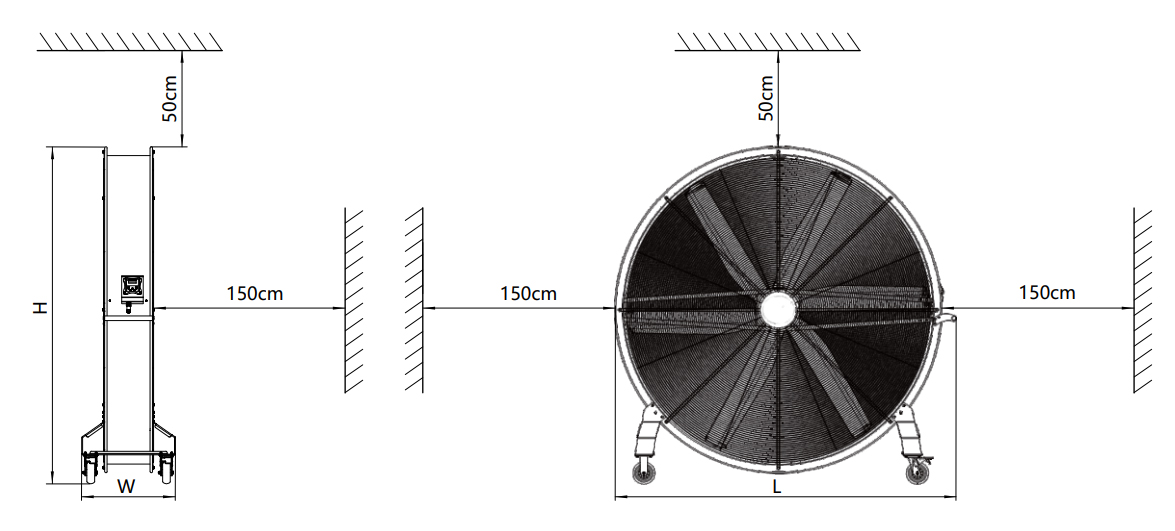

PERMANENT MAGNET SYNCHRONOUS MOTOR
| Model | L(cm) | W(cm) | H(cm) |
| ADS-Y12AR | 131 | 56 | 146 |
| ADS-Y15AR | 170 | 56 | 171 |
| ADS-Y20AR | 220 | 73.6 | 221 |

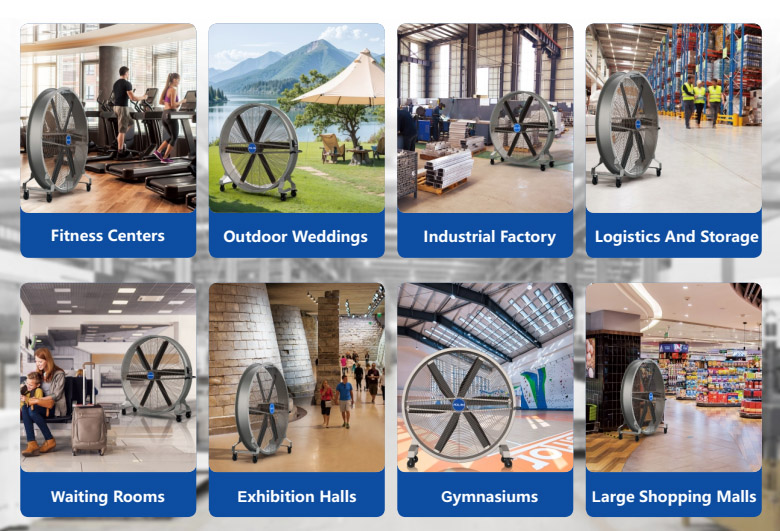

APPLICATIONS
Widely used in fitness center, outdoor wedding venues. industrial factory, logistics warehousing, waiting room, exhibitionha,physicaleducationhalland otherlargespaceplaces,asanewtypeof ceilingfanspaceventilation, personnelcoolingltcanpushalargeamountofairlwtotheground,formingacertainheightofthmoving airflow layer, thus contributing to the overall air circulation; Like the natural breeze system, enjoy the intimate experience of natural wind.
تستخدم مراوح Aolan HVLS شفرات ديناميكية هوائية لتوليد تدفق الهواء وذيلًا لتشكيل الاضطرابات التدفق، وتوليد تدفق الهواء الأرضي بمعدل 0.25-3.5 متر/ثانية من خلال نظام التحكم، والذي يعمل بشكل كبير يُحسّن راحة البيئة. تصل مساحة التغطية الفعالة إلى ١٧٠٠ متر مربع. أمتار (قطرها 46 متراً).
